COILS

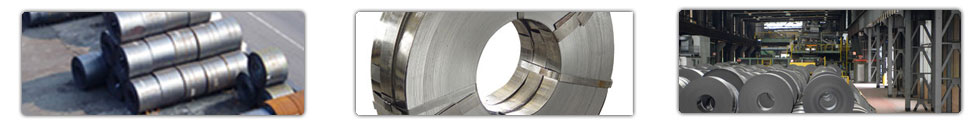

Steel sheet that has been wound. A slab, once rolled in a hot-strip mill, is more than one-quarter mile long; coils are the most efficient way to store and transport sheet steel. A rolling mill of several stands of rolls that converts slabs into hot-rolled coils. The hot-strip mill squeezes slabs, which can range in thickness from 2-10 inches, depending on the type of continuous caster, between horizontal rolls with a progressively smaller space between them (while vertical rolls govern the width) to produce a coil of flat-rolled steel about a quarter-inch in thickness and a quarter mile in length. The coils may be of different types like
Hot Rolled Coils (HR Coils)
Cold Rolled Coils (CR Coils)
Galvanized Coils (GP/GC Coils)
Stainless Steel Coils
Hot Rolled Coils
Rationalised sizes of HR Coils
1.6
930, 940, 960, 1040, 1130
1.8
930, 940, 960, 1040, 1130, 1160,1250
2.0, 2.2
930, 940, 960, 1000, 1020, 1040, 1130, 1160, 1250, 1310, 1400, 1420
2.5, 2.8
930, 940, 960, 1000, 1020, 1040, 1130, 1160, 1250, 1310, 1400, 1420, 1425
3.1, 3.5, 3.8
930, 940, 960, 1000, 1040, 1130, 1160, 1250, 1310, 1400, 1420, 1425
4.3, 4.6,
930, 940, 960, 1000, 1040, 1130, 1160, 1250, 1310, 1400, 1420, 1425, 1550
4.8
930, 1000, 1040, 1130, 1250, 1310, 1400, 1420, 1425
5
930, 1000, 1040, 1130, 1250, 1310, 1370, 1400, 1420, 1500, 1550, 1730, 1829
5.1
930, 1000, 1040, 1130, 1250, 1310, 1370, 1500, 1550, 1730, 1829
5.6, 6
930, 1000, 1040, 1130, 1250, 1310, 1370, 1400, 1420, 1500, 1550, 1730, 1829
6.2, 7, 8, 8.6, 9.2, 10
930, 1000, 1040, 1130, 1250, 1310, 1370, 1400, 1420, 1550, 1730, 1829
11,12,14,16
1040, 1130, 1250, 1310, 1370, 1400, 1420 1550, 1730
Cold Rolled Coils
Rationalised sizes of CR Coils
0.40, 0.45
900, 905, 910, 914, 920, 1000, 1005, 1010, 1020
0.5
900, 905, 910, 914, 920, 1000, 1005, 1010, 1020, 1105, 1120
0.55, 0.58
900, 905, 910, 914, 920, 1000, 1005, 1010, 1020, 1105
0.60
900, 905, 910, 914, 920, 1000, 1005, 1010, 1020, 1100, 1105, 1120
0.63
900, 905, 910, 914, 920, 1000, 1005, 1010, 1020, 1100, 1105, 1120, 1219, 1250, 1270
0.70
900, 905, 910, 914, 920, 1000, 1005, 1010, 1020, 1105, 1219, 1250, 1270
0.8, 0.9
900, 914, 920, 1000, 1020, 1120, 1219, 1250, 1270, 1420
1.00
900, 914, 920, 1000, 1020, 1120, 1219, 1250, 1270, 1320, 1420, 1520, 1580
1.25,1.50, 1.60, 1.85
900, 914, 920, 1000, 1020, 1120, 1219, 1250, 1270, 1320, 1420, 1520, 1580, 1620
2.00
900, 914, 920, 1020, 1120, 1219, 1250, 1270, 1320, 1420, 1520, 1580, 1620
Galvanised Plain Sheets and Coils Galvanised Corrugated Sheets
Galvanised steel sheets/ coils are Zinc coated Cold Rolled sheets/ coils as per IS 513/ 1994 (O and D grades) as per customers' requirements
0.3, 0.35, 0.4, 0.45
900, 1000
0.5, 0.55, 0.6
900, 1000, 1100
0.63, 0.8, 1, 1.25, 1.4, 1.6
900, 1000, 1100, 1200, 1220
